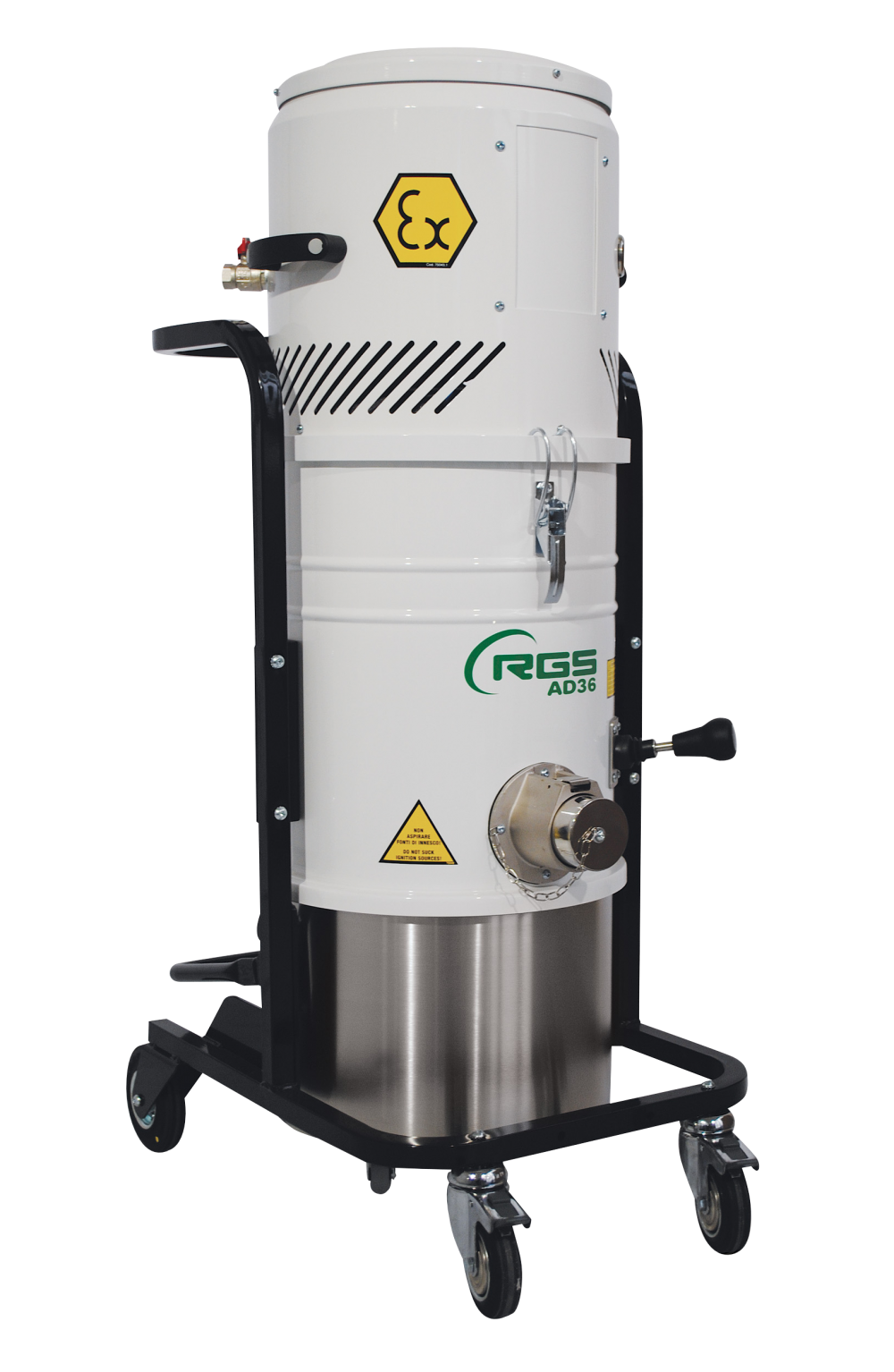

Atex Compressed Air Industrial Vacuum Cleaner AD36X1

The AD36x1 uses compressed air and has no moving parts. The vacuum is created by a "Venturi" system which makes the machine suitable for areas where electricity is not available or prohibited. Available in X1-X2-X3 versions, it can be used in hazardous areas zone 21-20 internally: marking EX II 2/1D. Equipped with a removable collection container in 25 litres and an antistatic star filter with a diameter of 360mm and with an area of .70m².

Applications

Aeronautical and Aerospace Pharmaceutical

Technical Features

  • Machine body Ø360mm
  • Pneumatic ejector (Venturi system)
  • Star filter of polyester cat.“L” antistatic
  • Manual filter shaker on the side
  • Manometer to control the compressed air pressure
  • Quick inlet Ø70mm
  • Container of 25 l with integrated handle and castors, in stainless steel in X1 standard version
  • Rear castors Ø125mm, front castors Ø100mm with brake, antistatic
  • Compressed air hose, antistatic, 10m long, complete with connector
  • standard version X1 with trolley Ral 9005 black, container in stainless steel and filter chamber Ral 9003 white
  • X2 version with trolley Ral 9005 black, container and filter chamber in stainless steel
  • X3 version completely in stainless steel
  • We recommend using accessories for cleaning Ø40mm
Ad36x1

Specification

    AD36X1
Air consumption LT/MIN 1200NI/min
Power Watt -
Depression max mbar 280
Max air flow m3/h 350
Primary filter surface m2 0.70
Absolute filter surface m2 1.1
Container capacity Lt 25
Product inlet mm Ø70
Noise level Dba 70
Overall dimensions Cm 48 x 65 x 118h
Weight Kg 36
Compressed air required bar 4-8
