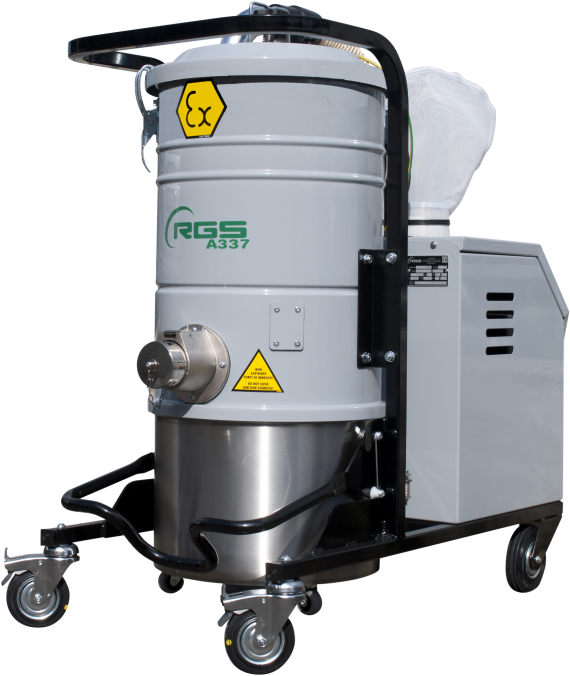

Atex Single-Phase Industrial Vacuum Cleaner A337MX1.3D

Compact single phase industrial vacuum cleaners in ATEX Zone 22 Dusts (3D) and ATEX Zone 2 gas (3G). The vacuum cleaner represents the ideal solution when space is at a premium thanks to its small size and in fact, is only 46x100x100(h) cm. With its continuously rated single phase 2.2 kW side channel blower, it is an ideal solution for extracting dusts and trimmings in industrial work environments classified for Zone 22. This vacuum cleaner has been designed, engineered and built in compliance with the directives EN 60335-2-69 concerning the vacuum cleaners and 94/9 / EC for operation in areas classified ATEX 2-22. The emptying of the 25-litre container is extremely rapid thanks to the release system.

Applications

Farming and Agriculture

Technical Features

  • Machine body Ø360mm
  • Side channel blower with single phase motor asynchronous marked ATEX EX II 3GD
  • Electric cable 10m long with industrial plug 3 Ph+ earth 16A IP67
  • Manual filter shaker
  • Star filter of polyester cat. “M” antistatic
  • Quick inlet Ø70mm
  • Container of 25lt with handle and castors, in stainless steel
  • Rear wheels Ø125mm, front wheels Ø100mm with brake, antistatic
  • Standard version with trolley Ral 9005 black, container in stainless steel and filter chamber Ral 7001 grey
  • X2 version with container and filter chamber in stainless steel
  • X3 version completely in stainless steel
A337x1-3d

Specification

    A337MX1.3D
Tension / Voltage Volts 1Ph 230V/50Hz
Power Kw 2.2
Depression max mbar max 290
Max working depression mbar 220
Max air flow m3/h 300
Primary filtering surface m2 1.20
Absolute filtering surface m2 1.20
Container capacity Lt 25
Product inlet mm 70
Noise level Dba 75
Overall dimensions Cm 46 x 93 x 100h
Weight Kg 79
Protection IP 65
