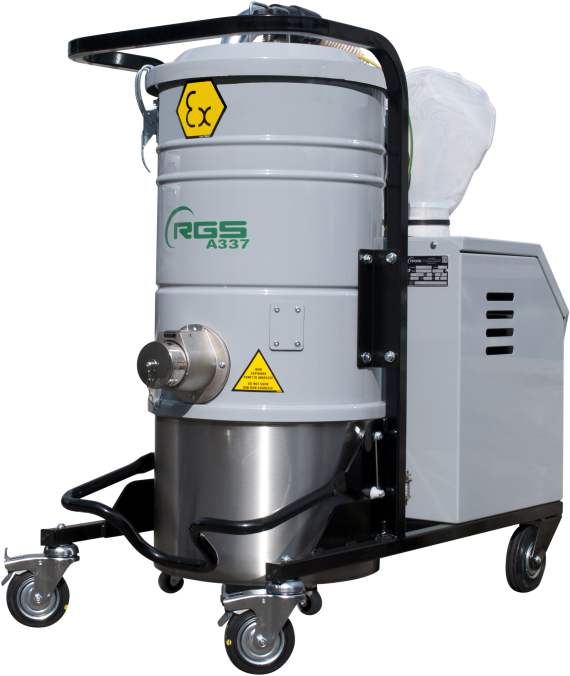

Atex Three-Phase Industrial Vacuum Cleaner A337X1.3D
Compact three phase industrial vacuum cleaners in ATEX Zone 22 Dusts (3D) and ATEX Zone 2 gas (3G). The vacuum cleaner represents the ideal solution when space is at a premium thanks to its small size and in fact is only 46x100x100(h) cm. With it continuously rated three phase 2.2 kW side channel blower it is an ideal solution for extracting dusts and trimmings in industrial work environments classified for Zone 22. This vacuum cleaner has been designed, engineered and built in compliance with the directives EN 60335-2-69 concerning the vacuum cleaners and 94/9 / EC for operation in areas classified ATEX 2-22. The emptying of the 25-litre container is extremely rapid thanks to the release system.
Technical Features
- Machine body Ø360mm
- Side channel blower with three phase motor asynchronous marked ATEX EX II 3GD
- Electric cable 10m long with industrial plug 3 Ph+earth 16A IP67
- Manual filter shaker
- Star filter of polyester cat. “M” antistatic
- Quick inlet Ø70mm
- Container of 25 lt with handle and castors in stainless steel
- Rear wheels Ø125mm, front wheels Ø100mm with break, antistatic
- Standard version with trolley Ral 9005 black, container in stainless steel and filter chamber Ral 7001 grey
- X2 version with container and filter chamber in stainless steel
- X3 version completely in stainless steel

A337x1-3d
Specification
A337X1.3D | ||
---|---|---|
Tension / Voltage | Volts | 230-400V/50Hz |
Power | Kw | 2.2 |
Depression max | mbar max | 290 |
Max working depression | mbar | 220 |
Max air flow | m3/h | 300 |
Primary filter surface | m2 | 1.20 |
Absolute filter surface | m2 | 1.20 |
Container capacity | Lt | 25 |
Product inlet | mm | 70 |
Noise level | Dba | 75 |
Overall dimensions | Cm | 46 x 93 x 100h |
Weight | Kg | 79 |
Protection | IP | 65 |
