Atex Three-Phase Industrial Vacuum Cleaner A346ECOX1.3D-A546KECOX1.3D-A756KECOX1.3D
The three phase industrial vacuum cleaners series ECO is suitable for use in environments classified as Atex zone 22. With its continuously rated 2.6 or 5.2kw motor and large filter area of 1.9 m² it is an ideal solution for extracting dusts and waste in industrial work environments. The large 100 litres waste bin with castors and side handles for emptying also has the option of a lifting system for fork lift.
Technical Features
- Side channel blower with three phase motor asynchronous marked ATEX EX II 3D put into a protective housing in the back side of the vacuum cleaner
- Electric cable 10m long with industrial plug 3Ph+earth 16A - IP 67
- Star filter in polyester “L” antistatic
- Manual filter shaker on top of the filter chamber for the filter cleaning
- Container of 100lt
- The container has got castors and lateral handles for the emptying and as an option the kit lifting system to have it up with a fork lift
- Quick inlet Ø70
- Support cable reeler in the back side
- Standard version with container in stainless steel, filter chamber and frame painted Ral 7001 grey
- X2 version with bin and filter chamber in stainless steel
- Fixed wheels Ø150mm and revolving wheels with brake Ø125mm
- Relief valve put in as standard

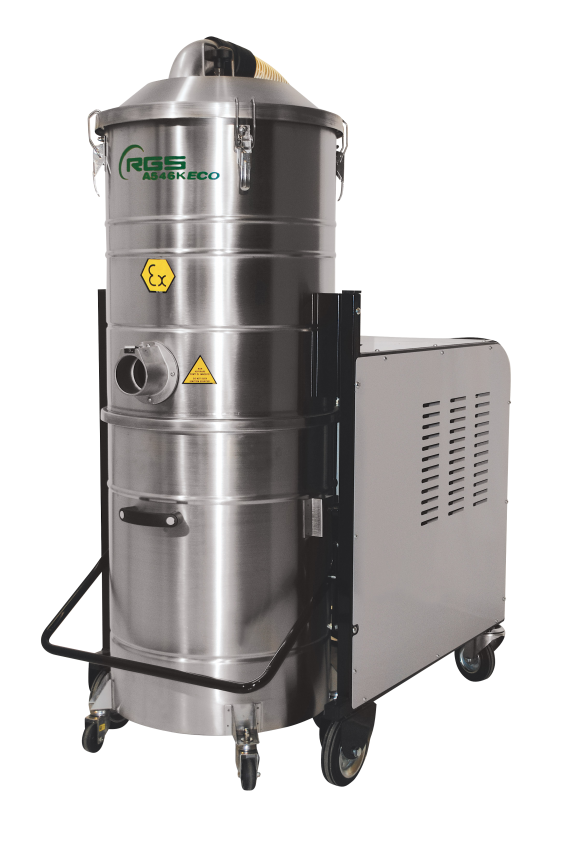

A546kecox2-3d
Specification
A346ECOX1.3D | A546KECOX1.3D | A756KECOX1.3D | ||
---|---|---|---|---|
Tension / Voltage | Volts | 230-400V/50Hz | 230-400V/50Hz | 230-400V/50Hz |
Power | Kw | 2.6 | 5.2 | 5.2 |
Depression max | mbar max | 300 | 290 | 290 |
Max working depression | mbar | 220 | 230 | 230 |
Max air flow | m3/h | 310 | 520 | 520 |
Primary filter surface | m2 | 1.90 | 1.90 | 3.40-Ø560 |
Upstream absolute filter surface | m2 | 2.20 | 2.20 | 2.20 |
Downstream absolute filter surface | m2 | NO | NO | NO |
Cartridge filter surface | m2 | 5 | 5 | 5 |
Container capacity | Lt | 100 | 100 | 100 |
Product inlet | mm | Ø70 | Ø70 | Ø70 |
Noise level | Dba | 74 | 76 | 76 |
Overall dimensions | Cm | 65 x 110 x 152h | 65 x 110 x 152h | 65 x 125 x 175h |
Weight | Kg | 102 | 135 | 170 |
Protection | IP | 55 | 55 | 55 |
